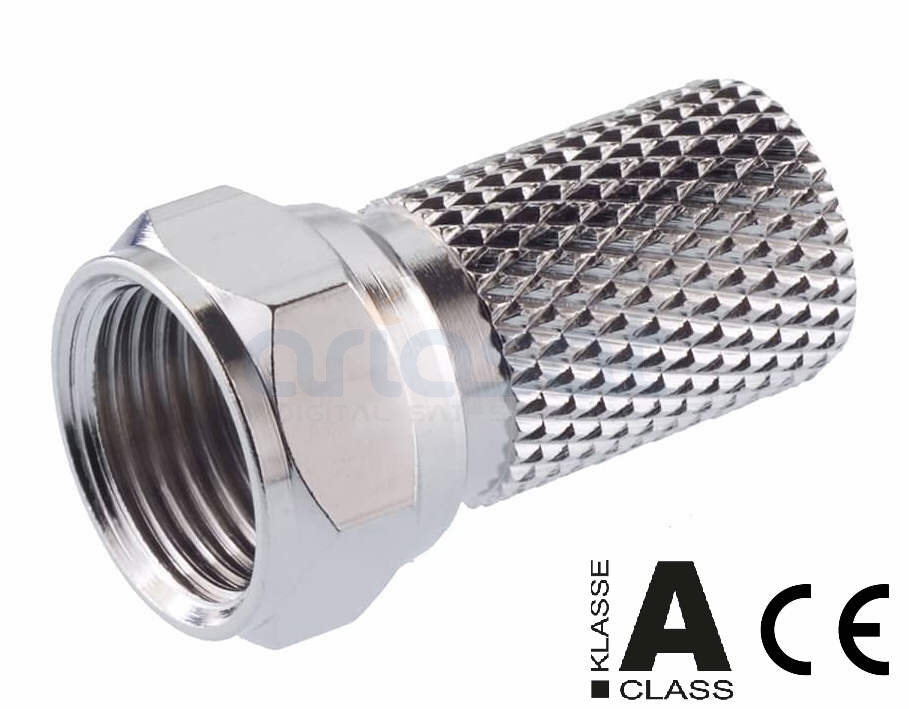

Kathrein EMK 01 F-Connector – High-Quality Twist-On Plug for 7mm Coaxial Cables

The Kathrein EMK 01 is the ideal F-type screw-on connector for a fast and reliable connection in your satellite or cable TV system. Specifically designed for 7mm RG6 cables, this robust connector ensures stable signal transmission without dropouts thanks to its precision manufacturing.

Compatibility & Applications

This F-connector is perfectly matched with high-quality Kathrein cables but is universally compatible with all coaxial cables featuring a 7mm outer diameter.

• Compatible Kathrein Cables: LCD 90, LCD 111 A+, LCD 115 A+, LCD 120 A+, LCD 130 A+.

• Cable Type: RG6 Coaxial (7mm).

• Application: Perfect for home users, SAT systems, cable receivers, and LNB connections.

Technical Highlights

• Class A Shielding: With a shielding rating of > 90 dB, this connector provides solid protection against external interference.

• Easy Installation: Thanks to its precision threading, the connector can be easily screwed onto the cable without the need for special tools.

• Durability: High-quality material finish for a long-lasting, secure connection.

Step-by-Step Installation Guide

For an optimal signal, please follow these steps:

1. Stripping: Carefully remove approx. 12mm of the outer jacket of the coaxial cable.

2. Prepare the Braid: Fold the exposed wire braid back over the outer jacket (do not cut it off!).

3. Dielectric & Inner Conductor: Expose approx. 8mm of the inner conductor by removing the white insulation.

4. Assembly: Screw the EMK 01 F-connector clockwise firmly onto the cable until the dielectric is flush with the inner edge of the connector.

5. Finishing: Trim the inner conductor so that it protrudes approx. 1mm beyond the edge of the connector.

Scope of Delivery

• 1x Kathrein EMK 01 F-type screw-on connector (Original Product)
