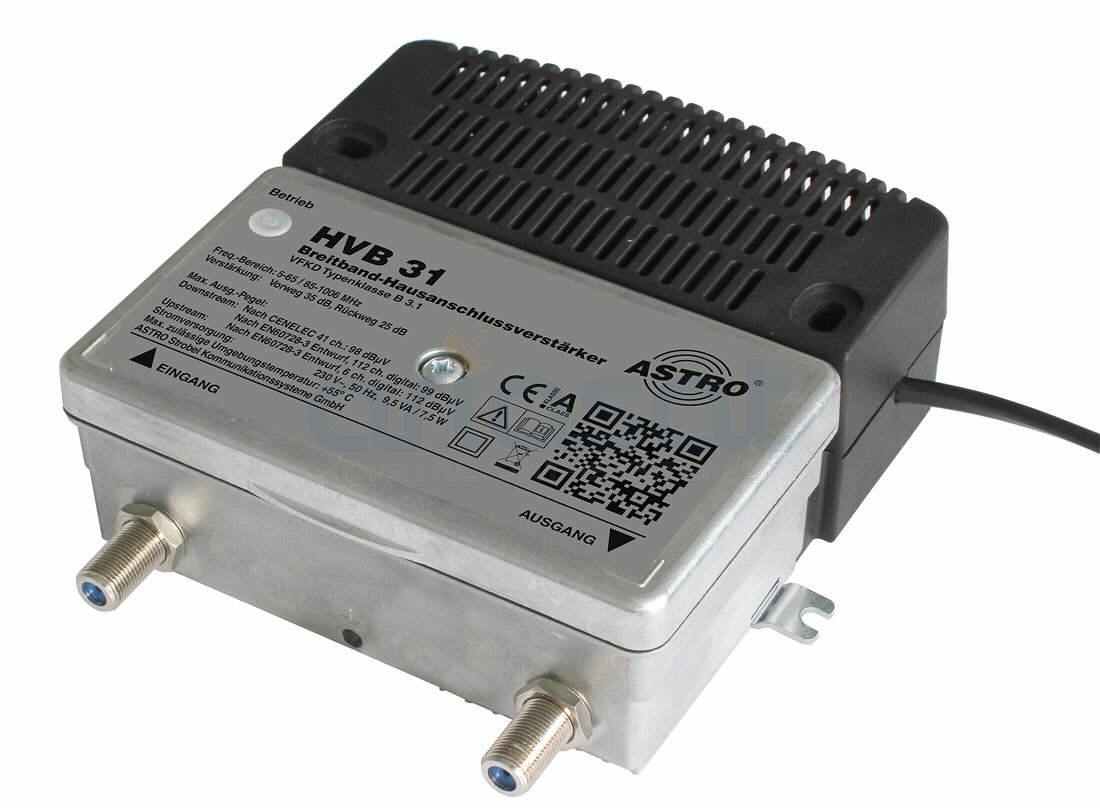

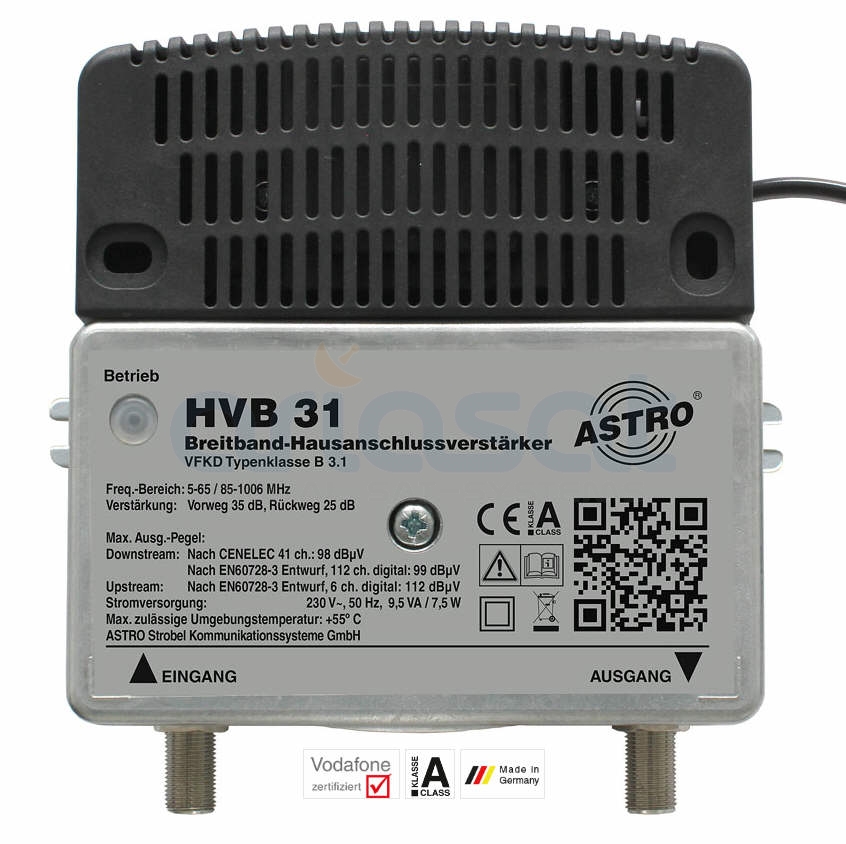

Astro HVB31 Amplifer for inhouse distribution 'Made in Germany'

Astro HVB 31 | 1006 Mhz | 31/25 dB

• Broadband amplifier with active 65 MHz return path
• high modulation of the return path for operational reliability even with multi-channel load
• Pre-gain 31 dB
• Output level Pre-way 99 dBµV
• Return path gain 25 dB
• Output level return path 112 dBµV (6 carriers in RW each 8 MHz / QAM256)
• Attenuation Pre-travel 0 - 15 dB in input, attenuator
• Equalizer pre-path 0 - 15 dB in input, attenuator
• Interstage Slope 0 or 7 dB, pluggable
• Attenuation in return path 0 - 15 dB in input, attenuator
• Interstage slope in the return path 3 dB fixed
• Vodafone certified, type class B(3.1)
