English Connection cable for Vodafone / Fritzbox cable route
- approved by Vodafone KDG / KDG 1 TS 153
- High quality 3-fold shielded class A+ midi coaxial cable

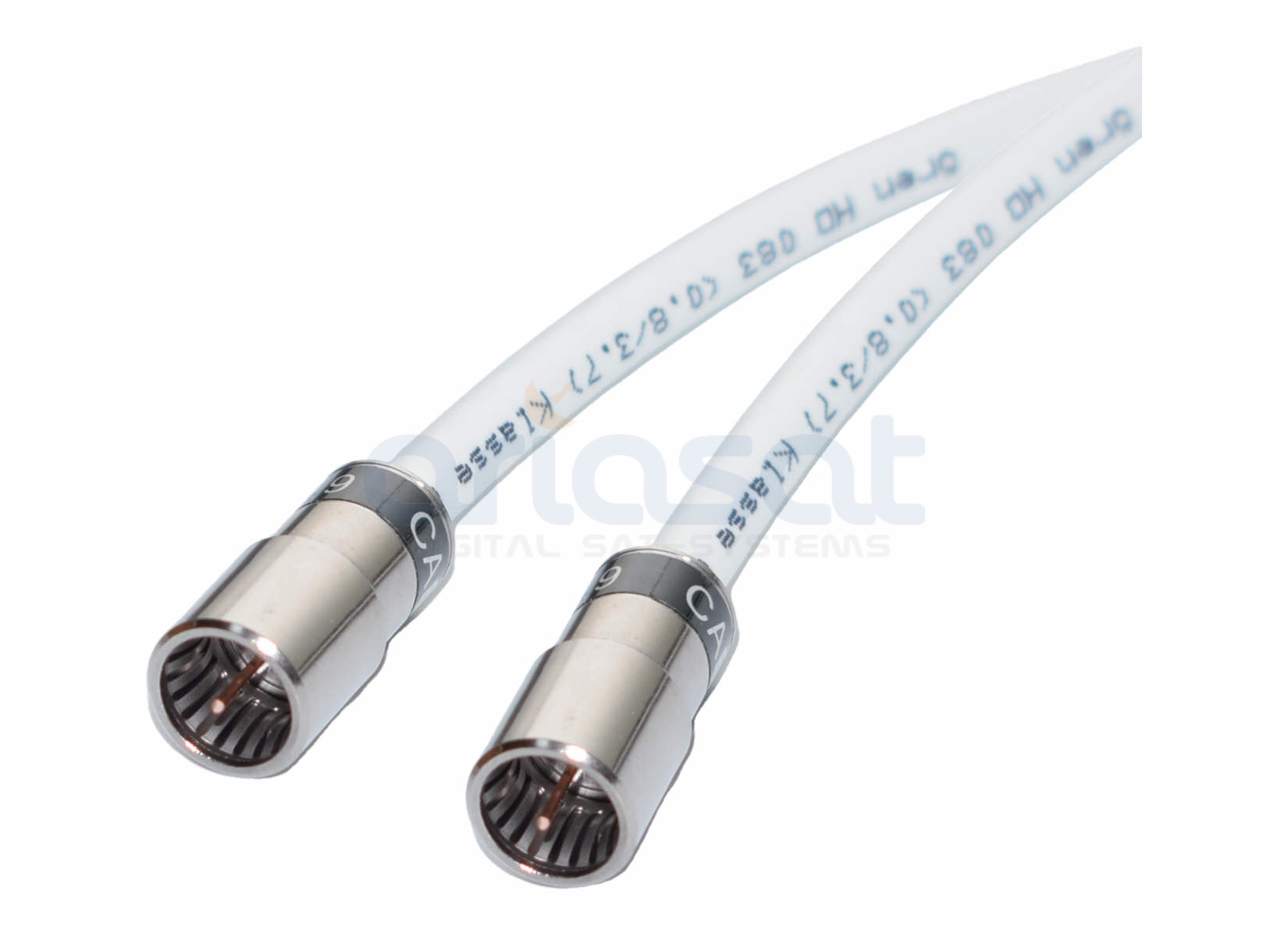

- Assembled with Cabelcon compression quick connector
- Excellent contact properties due to NITIN coating
- Outer diameter 5.8mm
- Colour: white

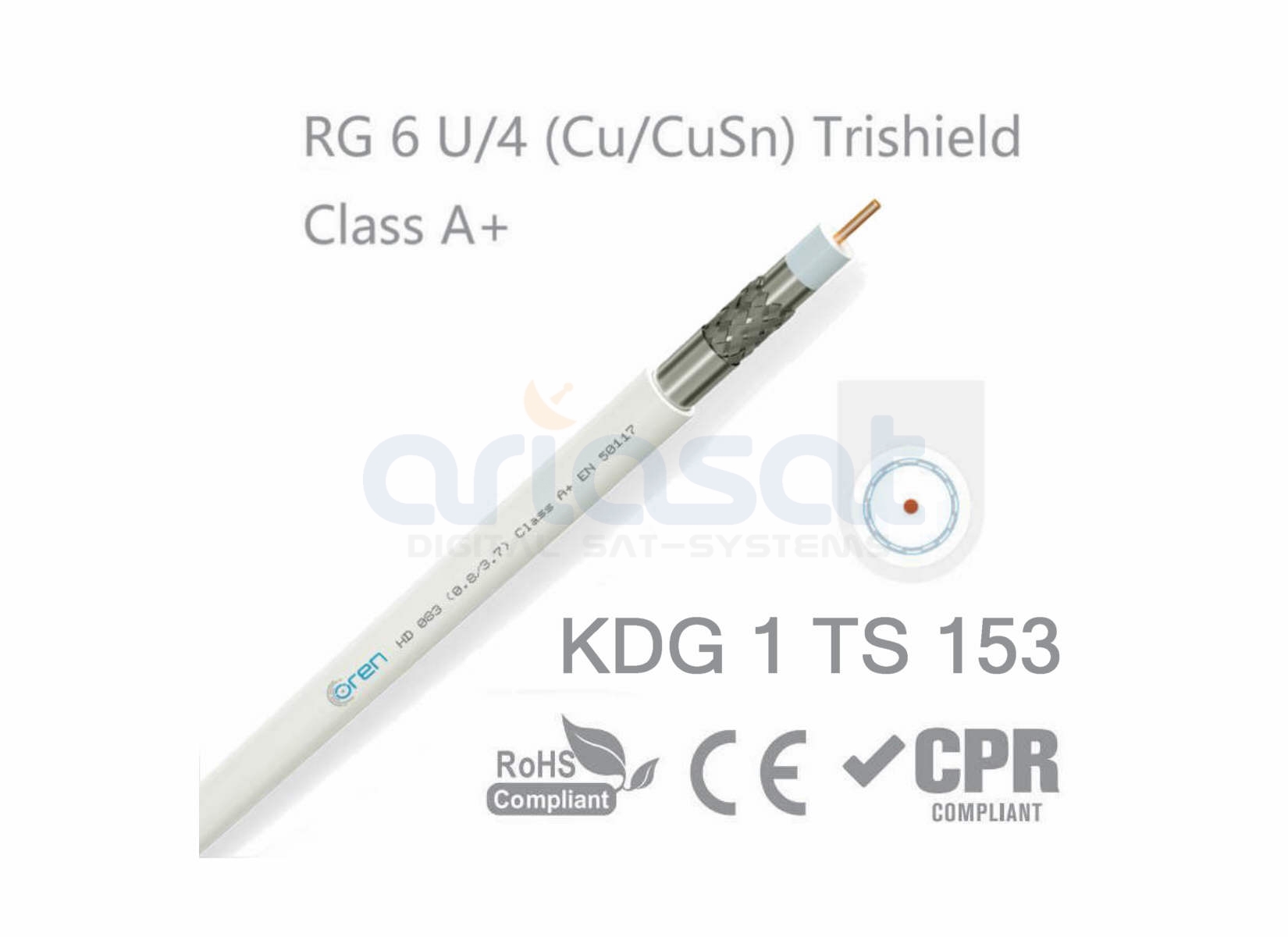

- Inner conductor: ø 0.81 mm solid copper
- Insulation : ø 3.6 mm gas-foamed PE
- 1st screen : aluminium foil bonded to the insulation
- 2nd shield : tinned copper braiding 63% coverage
- 3rd screen : aluminium foil bonded to the outer sheath
- Outer sheath : ø 5,80mm PVC white
- Fire protection class according to construction products regulation EN 50757: Eca
- Cable weight: 39 kg/km
- minimum bending radius: 30mm
- maximum tensile strength: 50N
- Flame retardant according to: IEC 60322-1
- Shielding effectiveness according to: Class A+ according to EN 50117-2 and EN 50117-2-4
- Characteristic impedance 75 ± 2 Ohm
- Capacitance 53 ± 2 pF/m
- Shortening factor: 82
- DC resistance inner conductor 3.45 Ohm/100m
- Coupling resistance : 5-30 MHz: <2.5 mOhm/m
- Shielding effectiveness : 30-1000 MHz : >110 dB
- Attenuation:
- 5 MHz 2.1 dB/100m
- 50 MHz 5.7 dB/100m
- 100 MHz 8.1 dB/100m
- 230 MHz 11.9 dB/100m
- 470 MHz 17.7 dB/100m
- 860 MHz 23.9 dB/100m
- 1006 MHz 25.7 dB/100m
- 1750 MHz 35.1 dB/100m
- 2150 MHz 38.6 dB/100m
- 2400 MHz 41.2 dB/100m
- 5-470 MHz > 26 dB
- 470-862 MHz > 23 dB
- 862-2150 MHz > 18 dB
Scope of delivery:

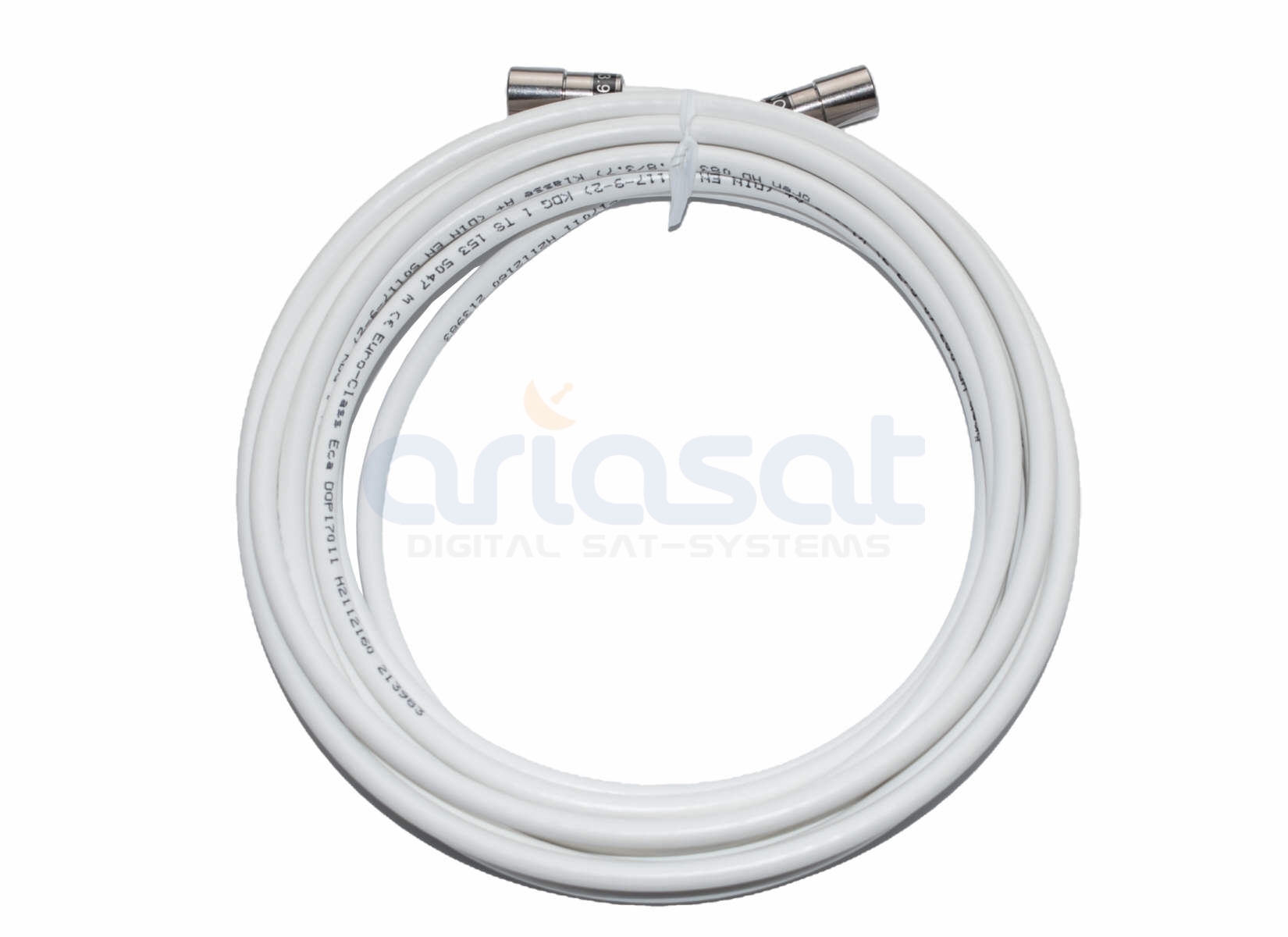

1x Ören HD 083 A+ coaxial cable by the metre, assembled with Cabelcon Quick F-connector
