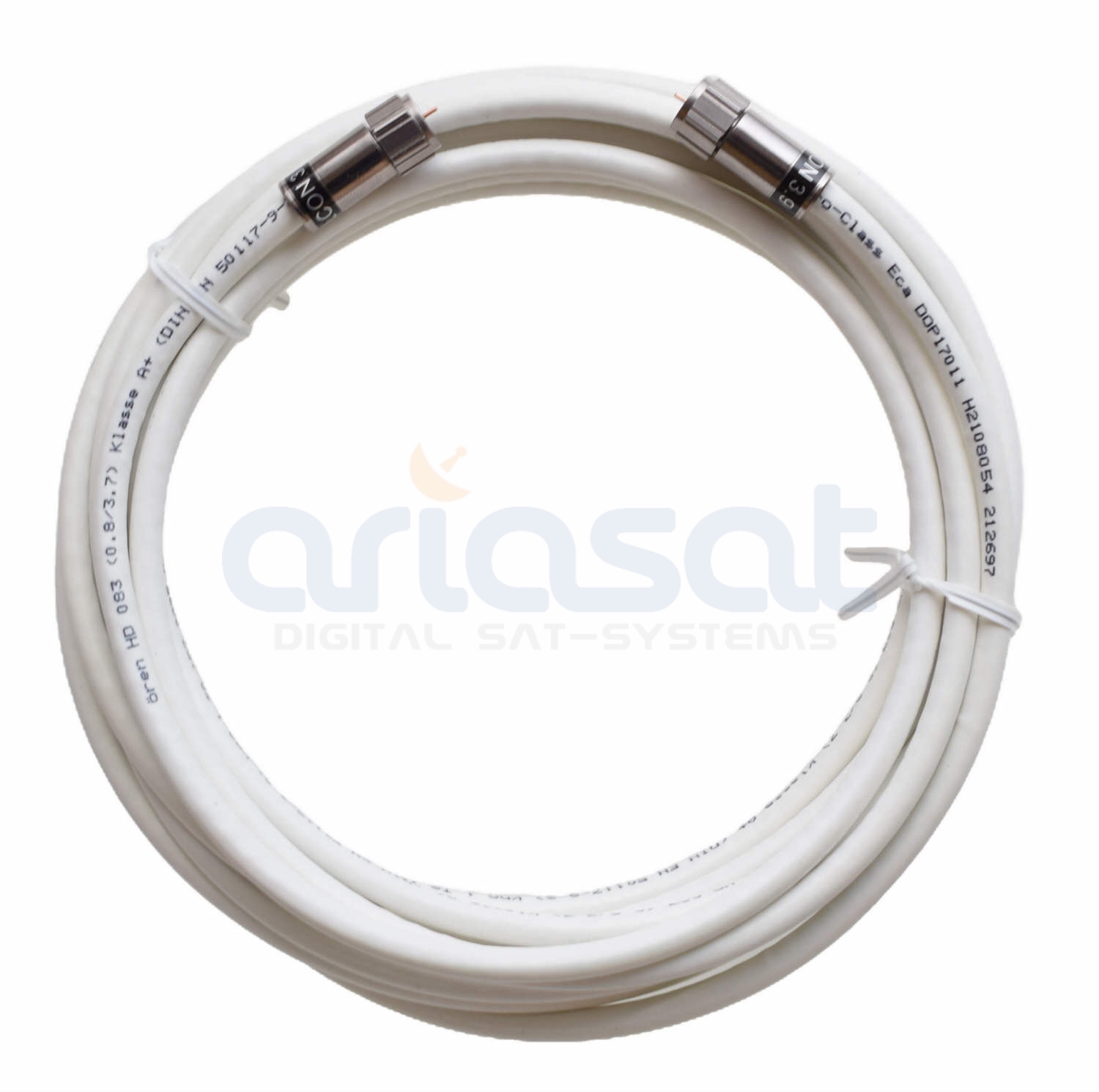

Midi coaxial satellite cable Ören HD 083 A+ with Cabelcon F-connector 3,5m

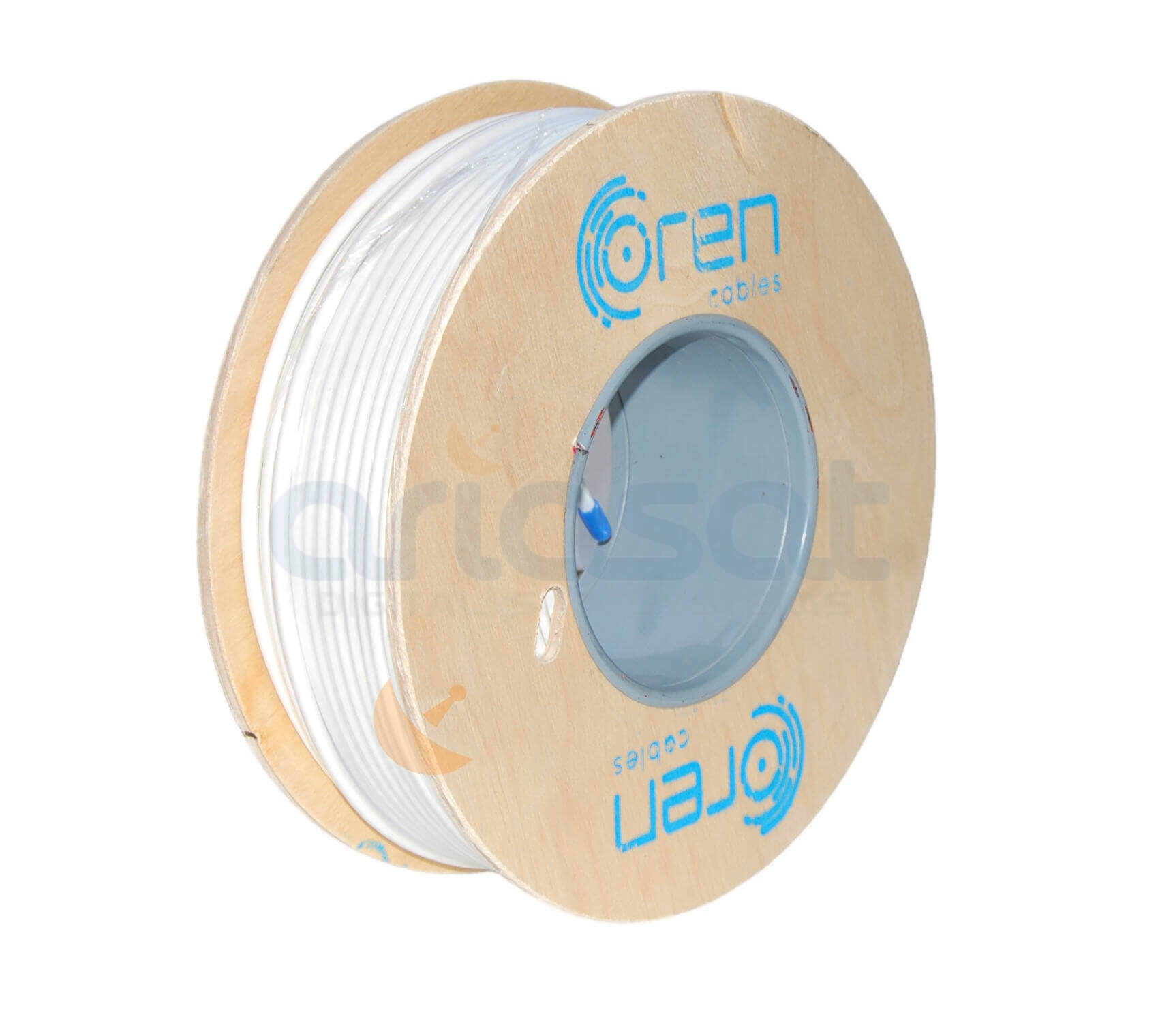

Ören HD 083 (0.8/3.7) RG59 Midi Trishield Coaxial Cable / Sat Antenna Cable

• High quality 3-fold shielded class A+ midi coaxial cable

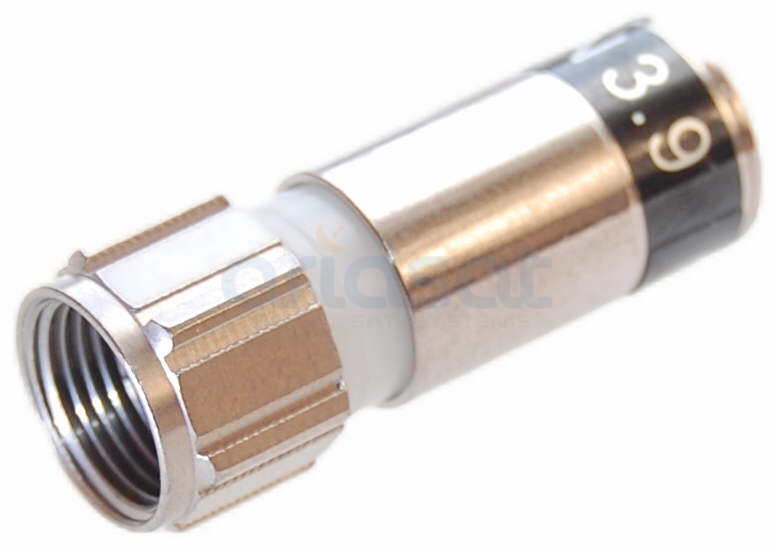

• Assembled with waterproof Cabelcon compression connectors
• NITIN coating ensures extremely high corrosion resistance with excellent contact properties.
• Copper inner conductor
• Outer diameter 5.8 mm
• Colour: white
• UV-resistant
• Copper content 14.0 kg/km

Technical data:

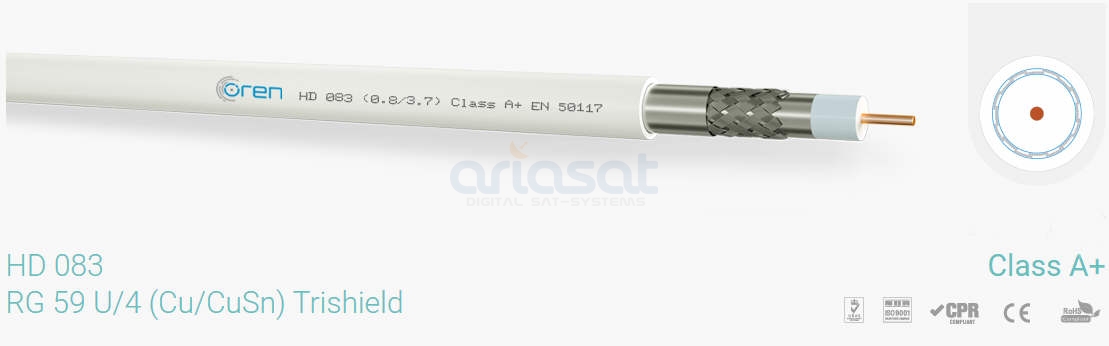

• Inner conductor: ø 0.81 mm solid copper
• Insulation : ø 3.6 mm gas-foamed PE
• 1st screen : aluminium foil bonded to the insulation
• 2nd shield : tinned copper braiding 63% coverage
• 3rd screen : aluminium foil bonded to the outer sheath
• Outer sheath : ø 5,80mm PVC white
• Fire protection class according to construction products regulation EN 50757: Eca
• Cable weight: 39 kg/km
• minimum bending radius: 30mm
• maximum tensile strength: 50N
• Flame retardant according to: IEC 60322-1
• Shielding effectiveness according to: Class A+ according to EN 50117-2 and EN 50117-2-4
• Characteristic impedance 75 ± 2 Ohm
• Capacitance 53 ± 2 pF/m
• Shortening factor: 82
• DC resistance inner conductor 3.45 Ohm/100m
• Coupling resistance : 5-30 MHz: <2.5 mOhm/m
• Shielding effectiveness : 30-1000 MHz : >110 dB
• Attenuation:
• 5 MHz 2.1 dB/100m
• 50 MHz 5.7 dB/100m
• 100 MHz 8.1 dB/100m
• 230 MHz 11.9 dB/100m
• 470 MHz 17.7 dB/100m
• 860 MHz 23.9 dB/100m
• 1006 MHz 25.7 dB/100m
• 1750 MHz 35.1 dB/100m
• 2150 MHz 38.6 dB/100m
• 2400 MHz 41.2 dB/100m

Return loss:

• 5-470 MHz > 26 dB
• 470-862 MHz > 23 dB
• 862-2150 MHz > 18 dB

Scope of delivery:
1x Ören HD 083 A+ coaxial cable with Cabelcon F-connector
