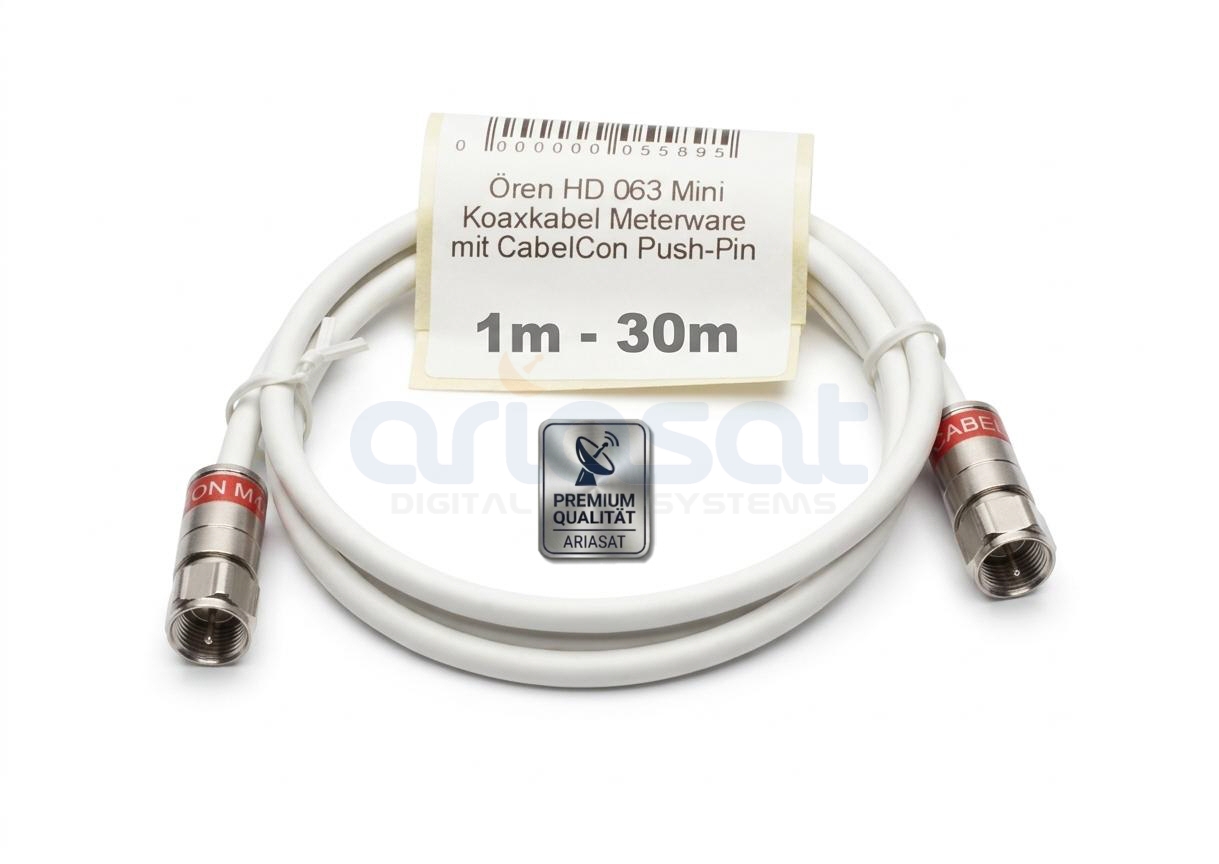

Mini coaxial satellite cable Ören HD 063 A+ with Push-Pin Cabelcon F-connector assembled by the metre 4m

Ören HD 063 (0.6/2.7) Mini Trishield Coaxial Cable / Sat Antenna Cable

• High quality 3-fold shielded class A+ midi coaxial cable
• Assembled with Push-Pin Cabelcon compression connectors

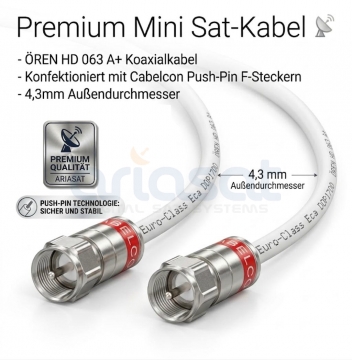

• The stable built-in conductor of the F-connectors prevents bending, and it can be safely connected
• NITIN coating ensures extremely high corrosion resistance with excellent contact properties.
• Copper inner conductor
• Outer diameter 4.3 mm
• Colour: white
• UV-resistant
• Copper content 9.7 kg/km

Technical data:

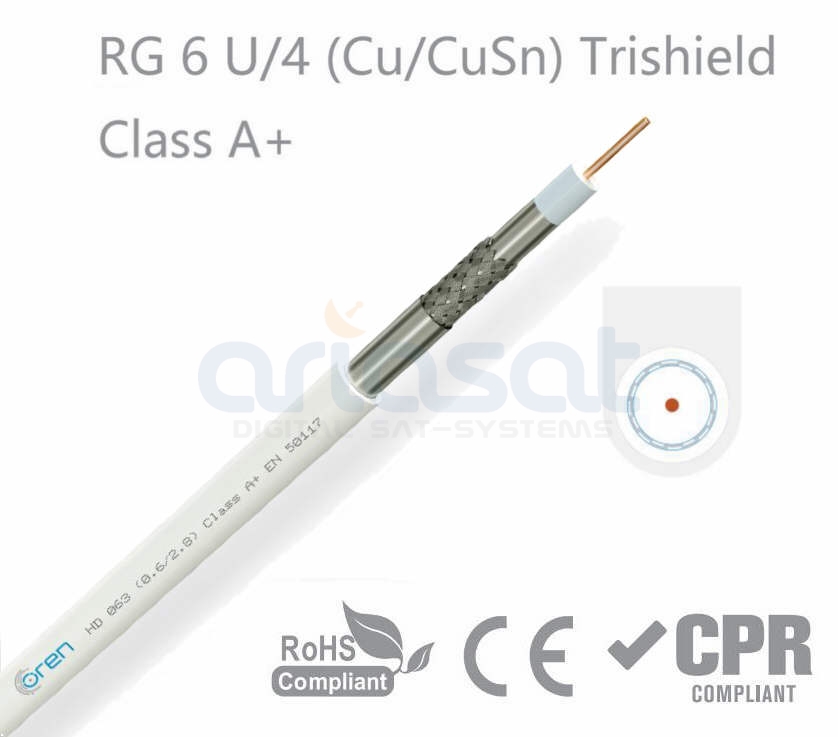

• Inner conductor: ø 0.6 mm solid copper
• Insulation : ø 2.7 mm gas-foamed PE
• 1st shield : aluminium foil bonded to the insulation
• 2nd shield : tinned copper braiding 65% coverage
• 3rd screen : aluminium foil bonded to the outer sheath
• Outer sheath : ø 4,30mm PVC white
• Fire protection class according to construction products regulation EN 50757: Eca
• Cable weight: 25 kg/km
• minimum bending radius: 25mm
• maximum tensile strength: 30N
• Flame retardant according to: IEC 60322-1
• Shielding effectiveness according to: Class A+ according to EN 50117-2 and EN 50117-2-4
• Characteristic impedance 75 ± 2 Ohm
• Capacitance 53 ± 2 pF/m
• Shortening factor: 82
• DC resistance inner conductor 6.19 Ohm/100m
• Coupling resistance : 5 - 30 MHz: <2.5 mOhm/m
• Shielding effectiveness : 30-1000 MHz : >100 dB

Attenuation:

• 5 MHz 2.8 dB/100m
• 50 MHz 7.8 dB/100m
• 100 MHz 10.9 dB/100m
• 230 MHz 16.8 dB/100m
• 470 MHz 24.2 dB/100m
• 860 MHz 33.2 dB/100m
• 1006 MHz 35.9 dB/100m
• 1750 MHz 45.8 dB/100m
• 2150 MHz 53.9 dB/100m
• 2400 MHz 56.9 dB/100m

Return loss:

• 5-470 MHz > 26 dB
• 470-862 MHz > 23 dB
• 862-2150 MHz > 18 dB

Scope of delivery:
1x Ören HD 063 A+ coaxial cable by the metre, assembled with Cabelcon F-connector
