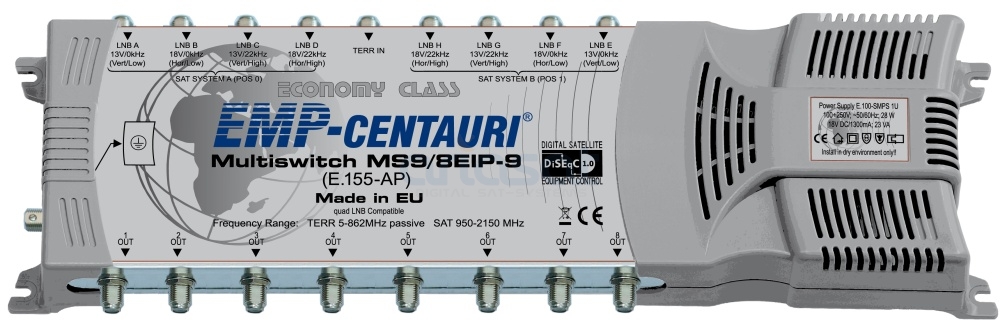

Multischalter EMP Centauri E.Lite Class MS9/8EIP-9 (E.155-AP)

EMP-Centauri MS9/8EIP-9 (E.155-AP)

Multischalter zum verteilen von SAT-Signalen von 2 SAT-Positionen und bis zu 8 Teilnehmern

Parameter	Bedingung	Wert
Frequency range	LNB inputs	950-2150 MHz
	Terr. input	5-862 MHz
	Outputs	5-2150 MHz
Control		DiSEqC 1.0 (2.0) commands
Insertion loss	Sat.	8 dB avg.
	Terr.	16 dB avg.
Sat. inputs isolation	Between V/H polarisations	25 dB avg
	Between low/high bands	25 dB avg
	Between sat. systems	30 dB avg
Maximum input level*	Sat.	90 dBµV avg
	Terr.	100 dBµV avg
Maximum output level*	Sat.	82 dBµV avg
	Terr.	84 dBµV avg
Power consumption	From each receiver	40 mA (18 V)
	From internal power supply	6 W + LNB
Dimensions (w,d,h)		36.0 x 11.4 x 5.3 (power cord length 130 cm)
Temperature range		-25 ~ +60 °C

Lieferumfang:
1x EMP Centauri MS9/8EIP-9 Multischalter inkl. Netzteil



Herstellerinformationen / Verantwortliche Person für die EU
EMP-Centauri s.r.o. 5.
kvetna 690 339 01 Klatovy 4
Czech Republic

e-Mail: info@emp-centauri.cz
WEEE-Reg.-Nr. DE 89633988
